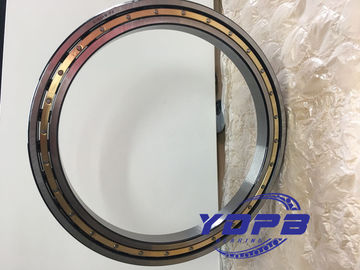

YDPB 618/1000 deep groove ball bearing 1000X1220X100mm brass cage textile bearings China supplier xuzhou bearing

  • YDPB 618/1000 deep groove ball bearing 1000X1220X100mm brass cage textile bearings China supplier xuzhou bearing
  • YDPB 618/1000 deep groove ball bearing 1000X1220X100mm brass cage textile bearings China supplier xuzhou bearing
  • YDPB 618/1000 deep groove ball bearing 1000X1220X100mm brass cage textile bearings China supplier xuzhou bearing
  • YDPB 618/1000 deep groove ball bearing 1000X1220X100mm brass cage textile bearings China supplier xuzhou bearing
  • YDPB 618/1000 deep groove ball bearing 1000X1220X100mm brass cage textile bearings China supplier xuzhou bearing
Place of Origin Luoyang，China
Brand Name YDPB
Certification ISO
Model Number 618/1000
Minimum Order Quantity 1PCS
Price 1$
Packaging Details carton +wooden case
Delivery Time within 7days according to quantity
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 100000pc/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Bearing Steel Structure Deep Groovr Ball
Dimension 1000X1220X100mm Weight 188kg
Custom Made Available OEM Available
Leave a Message
Product Description

YDPB 618/1000 deep groove ball bearing 1000X1220X100mm brass cage textile bearings China supplier xuzhou bearing



Profile:

Deep groove ball bearings are particularly versatile. They are suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance.



Product Usage:

Deep groove ball bearings can be used in gearboxes, instruments, motors, household appliances, internal combustion engines, transportation vehicles, agricultural machinery, construction machinery, construction machinery, roller skates, yo-yo, etc.



Main Parameters

YDPB 618/1000 deep groove ball bearing 1000X1220X100mm brass cage textile bearings China supplier xuzhou bearing 0

Beairng

Model

 Boundary Dimension Basic Load Rating Limit Speed Weight
d D B rsmin Cr Cor Grease oil
61819 95 120 13 1 19.3 20.4 5000 6000 0.288
61821M 105 130 13 1 19.5 21 4500 5300 0.362
61822 110 140 16 1 24.8 28 4300 5000 0.505
61824 120 150 16 1 24.7 28 3800 4500 0.568
61826M 130 165 18 1.1 35.8 38 3600 4300 0.898
61828M 140 175 18 1.1 37 40 3400 4000 0.93
61830M 150 190 20 1.1 46.4 53 3000 3600 1.36
61832M 160 200 20 1.1 49.5 59 2600 3200 1.32
61834M 170 215 22 1.1 65 61 2600 3200 1.87
61836M 180 225 22 1.1 61.8 65 2400 3000 1.97
61838M 190 240 24 1.5 72.5 83.5 2200 2800 2.38
61840M 200 250 24 1.5 72.3 84 2200 2800 2.68
61844M 220 270 24 1.5 74.1 89 1900 2400 3.21
61848M 240 300 28 2 103 116 1800 2200 4.78
61852M 260 320 28 2 122 128 1700 2000 4.85
61856M 280 350 33 2 131 188 1600 1900 7.17
61860M 300 380 38 2.1 163 206 1400 1700 10.4
61864M 320 400 38 2.1 164 220 1300 1600 11.4
61868M 340 420 38 2.1 169 227 1200 1500 11.6
61872M 360 440 38 2.1 173 242 1100 1400 12.2
61876M 380 480 46 2.1 278 345 1000 1300 19
61880M 400 500 46 2.1 242 403 1000 1200 21
61884M 420 520 46 2.1 245 420 980 1250 21.5
61888M 440 540 46 2.1 245 445 870 1000 22
61892M 460 580 56 3 303 435 900 1100 34.3
61896M 480 600 56 3 315 610 870 1100 36
618/500M 500 620 56 3 315 465 800 950 37.3
618/530 530 650 56 3 315 480 750 900 41.1
618/560MA 560 680 56 3 328 525 700 850 42.7
618/600 600 730 60 3 345 710 670 800 52.7
618/630 630 780 69 4 420 760 630 750 65.7
618/670 670 820 69 4 420 780 560 670 82.8
618/710 710 870 74 4 451 905 530 630 96.1
618/710 710 870 74 4 451 905 530 630 98.1
618/750 750 920 78 5 515 1240 480 610 110
618/800 800 980 82 5 545 1360 430 510 132
618/850 850 1030 82 5 555 1300 450 530 144
618/900 900 1090 85 5 600 1430 380 450 155
618/950 950 1150 90 5 663 1620 360 430 188
618/1000 1000 1220 100 6 635 1720 340 400 230



We also can supply many other high precision bearings,pls feel free to send your inquiry if some need
