MTO-210 High Quality Single-Row Four Point Contact Ball Slewing Bearing Made In China 210X365X40mm

  • MTO-210 High Quality Single-Row Four Point Contact Ball Slewing Bearing Made In China 210X365X40mm
  • MTO-210 High Quality Single-Row Four Point Contact Ball Slewing Bearing Made In China 210X365X40mm
  • MTO-210 High Quality Single-Row Four Point Contact Ball Slewing Bearing Made In China 210X365X40mm
  • MTO-210 High Quality Single-Row Four Point Contact Ball Slewing Bearing Made In China 210X365X40mm
Place of Origin Luoyang，China
Brand Name YDPB
Certification ISO
Model Number MTO-210
Minimum Order Quantity 1PCS
Price 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model MTO-210 Material 50Mn Or According To You
Structure Four-point Contact Ball Dimension 210X365X40mm
Application Manipulators Jib CranesLift-assist DevicesWork Positioners Name Four-point Contact Ball Bearings
Leave a Message
Product Description

MTO-210 Small Slewing Ring Bearings KAYDON  standard Manufacture China
Inner ring(mm)- 210
Outer ring(mm)- 365
Width(mm)- 40
Structure:four point contact ball bearing
Gear teeth: without
Seals type:double seals
Material: 50Mn/100Cr6/GCr15
Series Model NO..
MTO-050,MTO-065,MTO-122,MTO-143,MTO-145,MTO-145X,MTO-170,MTO-210,MTO-265,MTO-265X
Applications
MT series slewing ring bearings have been used successfully in a wide range of applications from light to heavy duty. The smaller sizes are well suited for:

  • Manipulators
  • Jib cranes
  • Lift-assist devices
  • Work positioners

Larger sizes are well suited for:

  • Truck-mounted cranes
  • Aerial lifts
  • Hoists
  • Small wind turbines
  • Non-precision positioning tables

Structure and Parameters:
MTO-210 High Quality Single-Row Four Point Contact Ball Slewing Bearing Made In China 210X365X40mm 0

ModelOutline Dimension(mm)Moment rating Crm
d D H Hi/HoG (lbs)(ft-lbs)
MTO-0505011020182830
MTO-06565135222041,330
MTO-1221222263429135,020
MTO-1431432493429158,950
MTO-14514530050443726,000
MTO-145X14531250444130,600
MTO-17017031046413316,520
MTO-21021036540383844,500
MTO-210X21037350444852,100
MTO-26526542050445462,000
MTO-265X26543450446171,900

Related Photoes

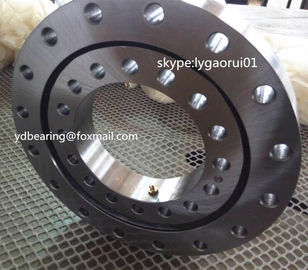

MTO-210 High Quality Single-Row Four Point Contact Ball Slewing Bearing Made In China 210X365X40mm 1
MTO-210 High Quality Single-Row Four Point Contact Ball Slewing Bearing Made In China 210X365X40mm 2
MTO-210 High Quality Single-Row Four Point Contact Ball Slewing Bearing Made In China 210X365X40mm 3
Drawings and other parameters ,pls contact us free, thanks
Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
