XV90 Thin Section Bearings/Roller Bearing/Slim Bearing 90x145x19/18mm
| Place of Origin | Luoyang，China |
|---|---|
| Brand Name | YDPB |
| Certification | ISO |
| Model Number | XV90 |
| Minimum Order Quantity | 1PCS |
| Price | 1$ |
| Packaging Details | bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases |
| Delivery Time | 5-7days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000pcs/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | XV90 | Material | GCr15 |
|---|---|---|---|
| Structure | Crossed Cylindrical Roller Bearings | Dimension | 90x145x19/18mm |
| Application | Robots Arm/machine Tool | Name | Cross-roller Bearing |
Product Description
XV series INA standard Crossed Roller slewing ring Bearings, Split inner ring,Sealed on both sides,without gear teeth.
Model number- XV90
Inner ring(mm)- 90
Outer ring(mm)- 145
Width(mm)- 19/18
Weight(Kg)- 1.29
Materials- GCR15/GCR15SiMn
Precision grade- Standard
Lubrication type- Grease lubrication
Rotating part- Inner Ring Split
Series Model NO.
XV30,XV40,XV50,XV60,XV70,XV80,XV90,XV100,XV110.
Features
1. Are screw mounted by means of the outer ring to the adjacent construction,t
2. The inner ring is located by means of a locknut, can be adjusted very precisely to give a specific clearance or preload by means of the locknut.
3. Sealed on both sides,
4. two lubrication nipples radially and two lubrication nipples axially.
5. Working Temperature -25℃-- +80℃
Structure and Parameters:
| Dimension | Basic load rating | Weight | ||||||||||
| d | D | B | C | D1 | n 1 | d 1 | D 1 1 | T 1 | rs | Cr | Cor | ||
| XV30 | 30 | 75 | 15 | 14 | 60 | 12 | 4.6 | 8 | 4.6 | 2X20° | 7.4 | 10.4 | 0.37 |
| XV40 | 40 | 85 | 15 | 14 | 70 | 12 | 4.6 | 8 | 4.6 | 2X20° | 8.7 | 13.8 | 0.44 |
| XV50 | 50 | 100 | 17 | 16 | 85 | 12 | 5.6 | 10 | 5.4 | 2X20° | 13.1 | 21.5 | 0.67 |
| XV60 | 60 | 110 | 17 | 16 | 95 | 16 | 5.6 | 10 | 5.4 | 2X20° | 14.4 | 25.5 | 0.75 |
| XV70 | 70 | 120 | 17 | 16 | 105 | 16 | 5.6 | 10 | 5.4 | 2X20° | 15.1 | 28 | 0.84 |
| XV80 | 80 | 135 | 19 | 18 | 120 | 16 | 6.6 | 11 | 6.4 | 2X20° | 21.4 | 40.5 | 1.18 |
| XV90 | 90 | 145 | 19 | 18 | 130 | 16 | 6.6 | 11 | 6.4 | 2X20° | 22.3 | 44.5 | 1.29 |
| XV100 | 100 | 170 | 23 | 22 | 150 | 16 | 9 | 15 | 8.5 | 2X20° | 34.4 | 65 | 2.31 |
| XV110 | 110 | 180 | 23 | 22 | 160 | 16 | 9 | 15 | 8.5 | 2X20° | 36.2 | 72 | 2.48 |

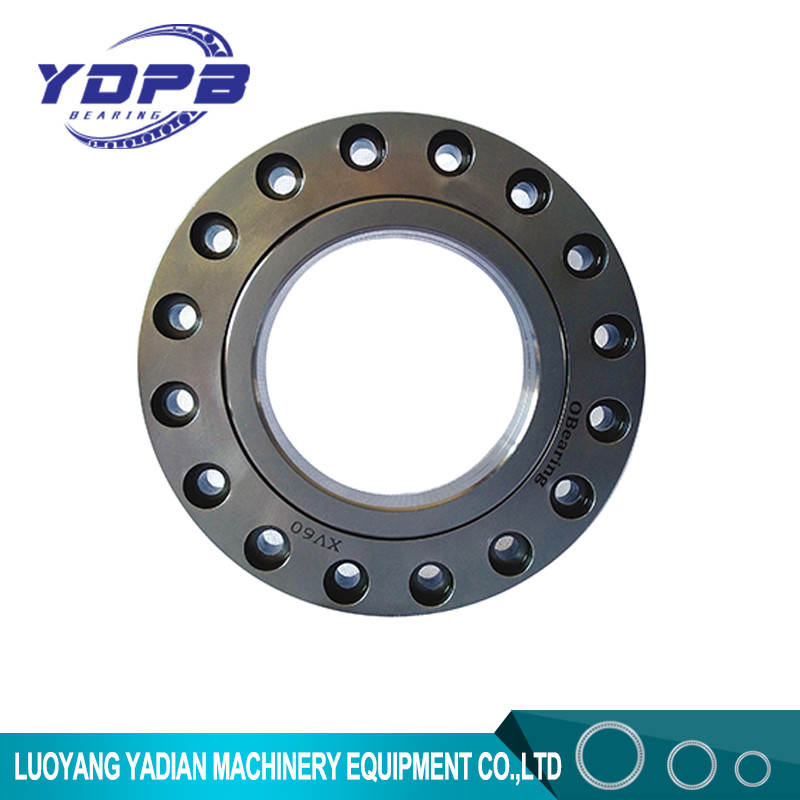

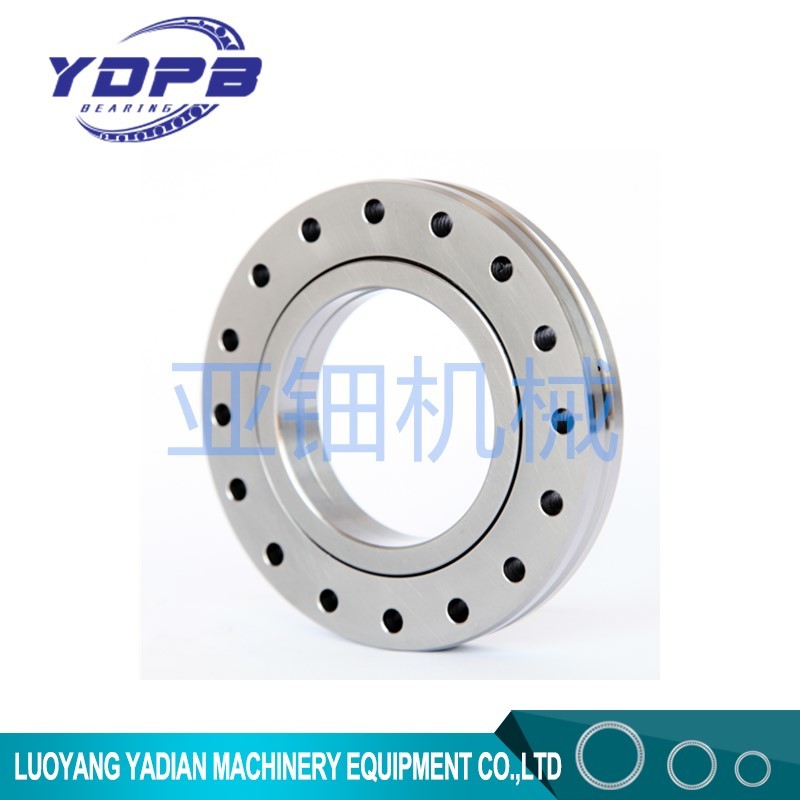

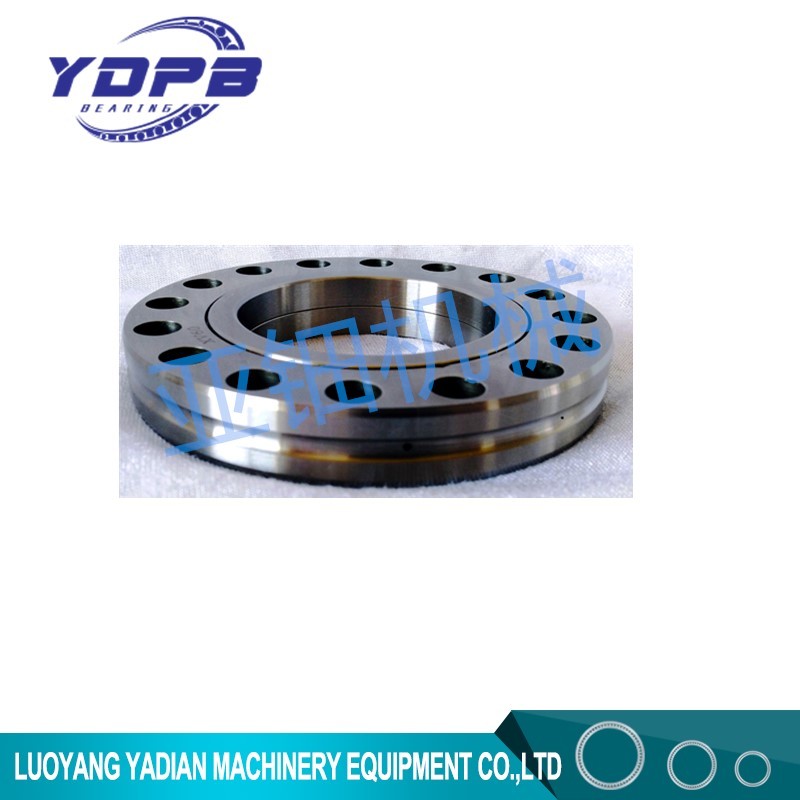

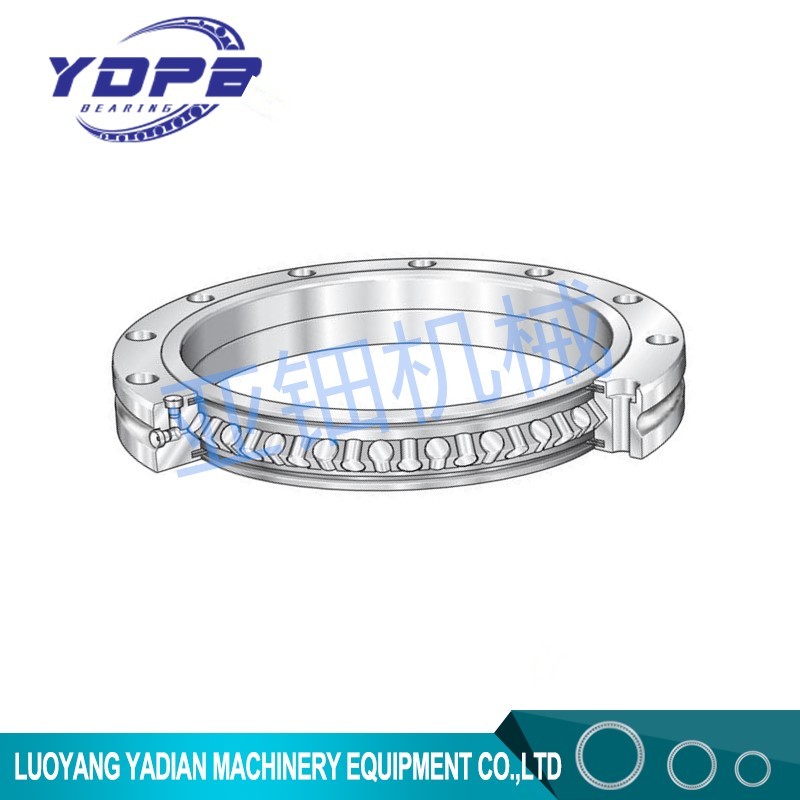

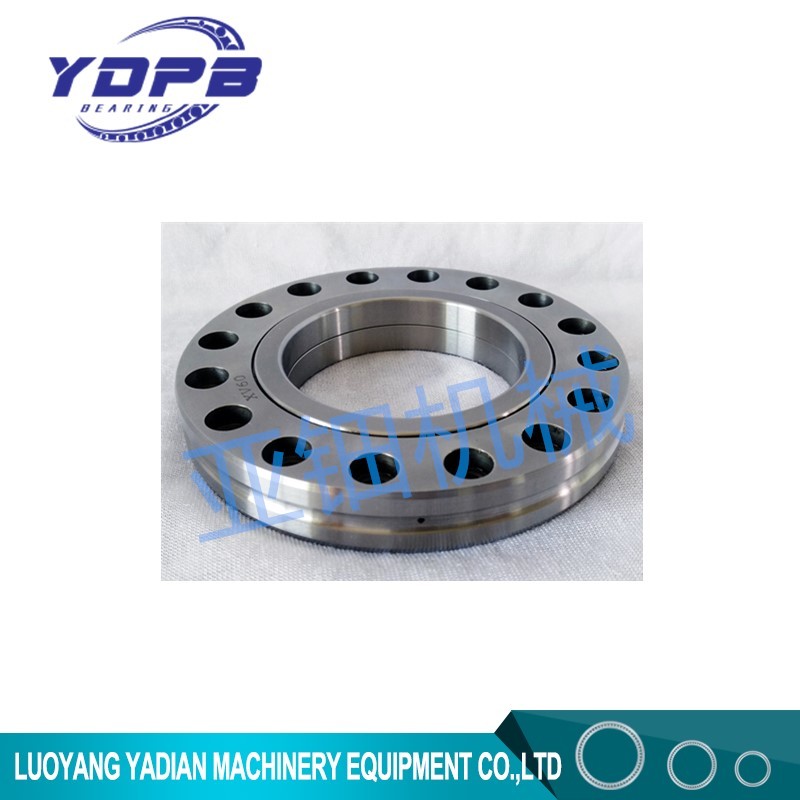

Related Photoes
Drawings and other parameters ,pls contact us free, thanks
Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
